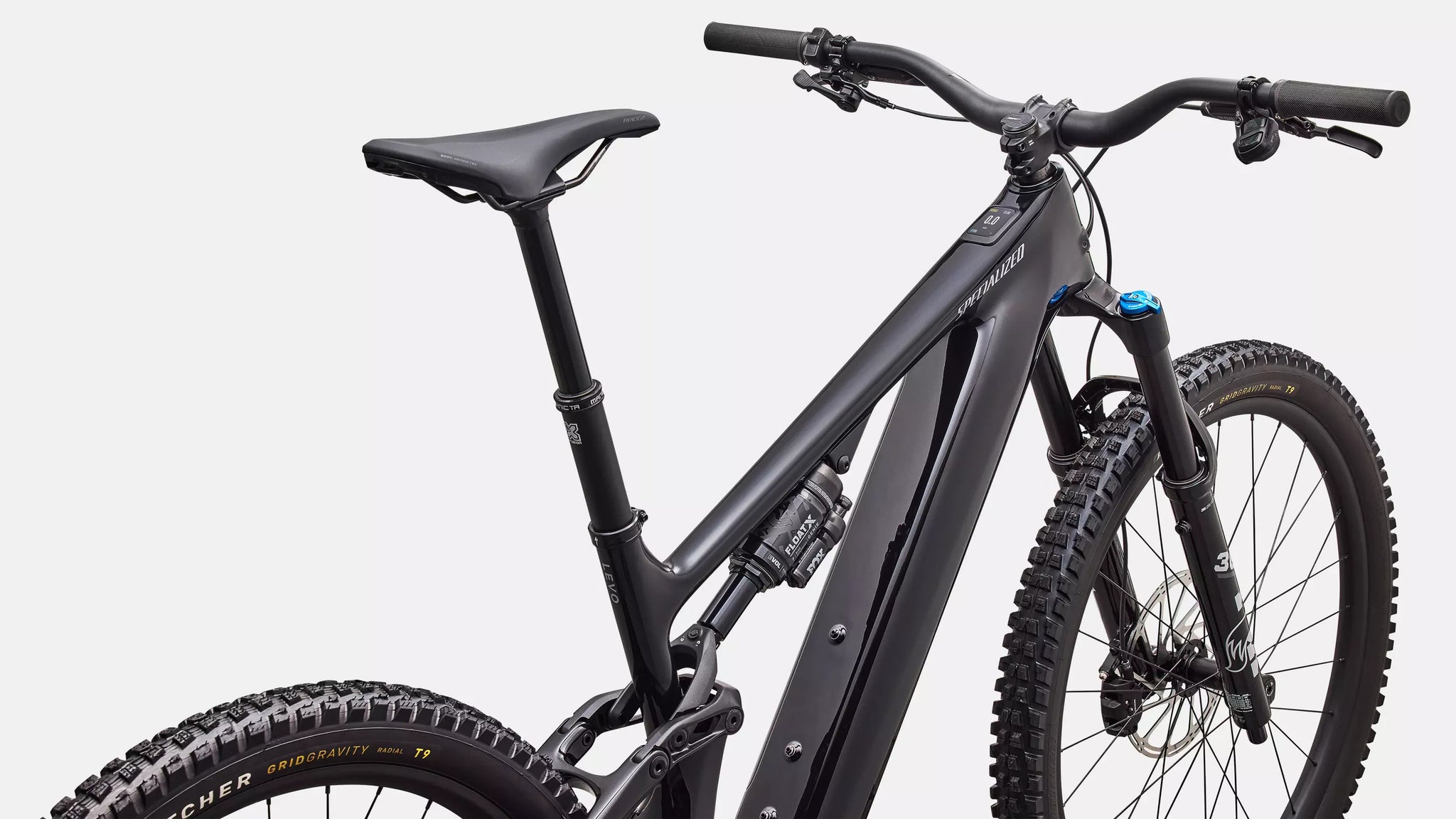

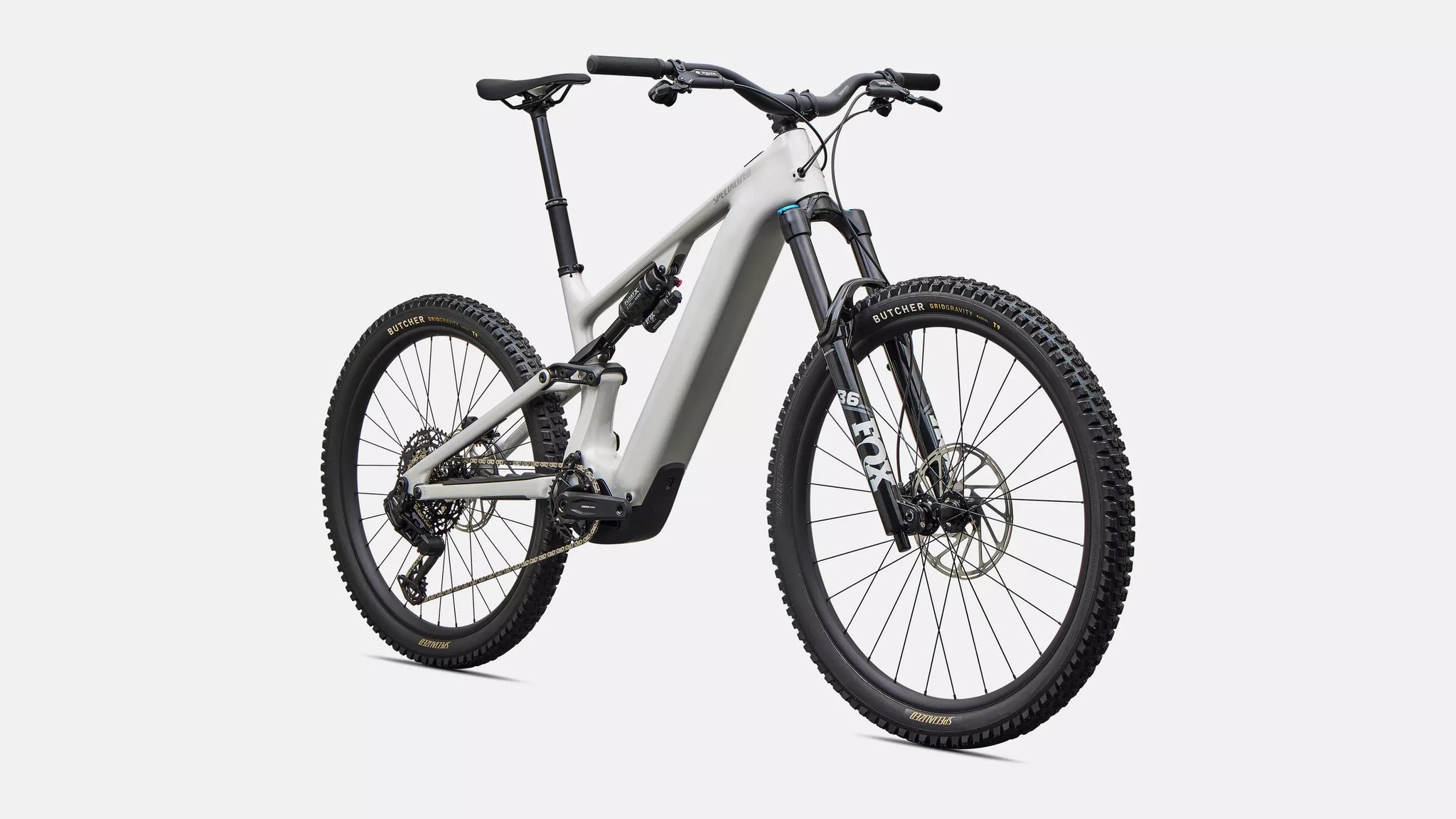

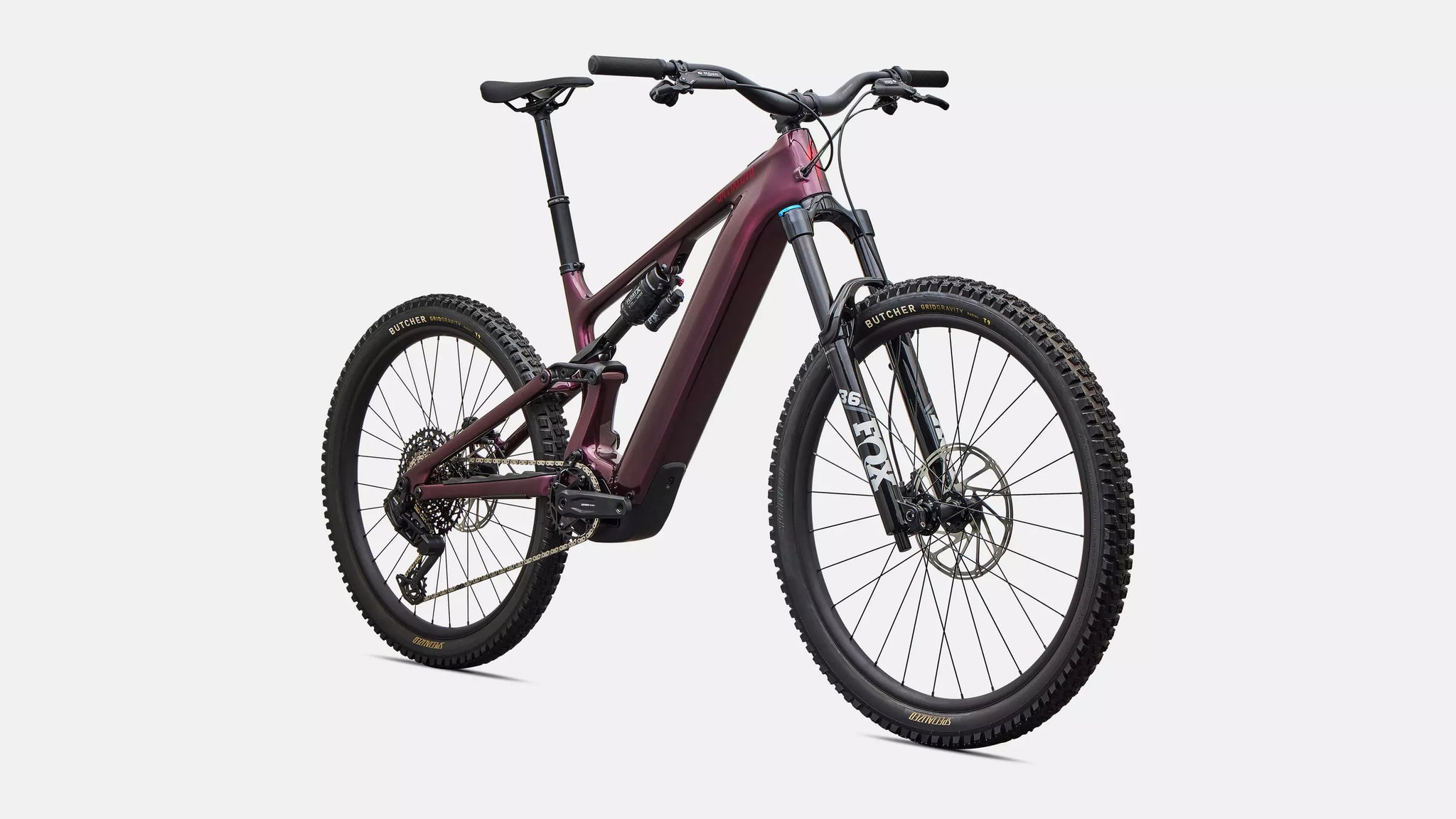

Turbo Levo 4, Where Super Meets Natural
SuperNatural Power, Ride, and Range
The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
En un coup d’œil
Use
Full Power E-MTB Trail
E-System
Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range
Frame
FACT 11m Carbon, Geo Adj & SWAT Storage
Suspension
Front: 160mm FOX FLOAT 36 Rhythm GRIP<br>Rear: 150mm GENIE - FOX FLOAT X Performance
Drivetrain
SRAM S1000 Eagle T-Type AXS
Wheels
Specialized Alloy Rims / Bear Pawls hubs
Spécifications techniques
E-bike
- UI/Remote

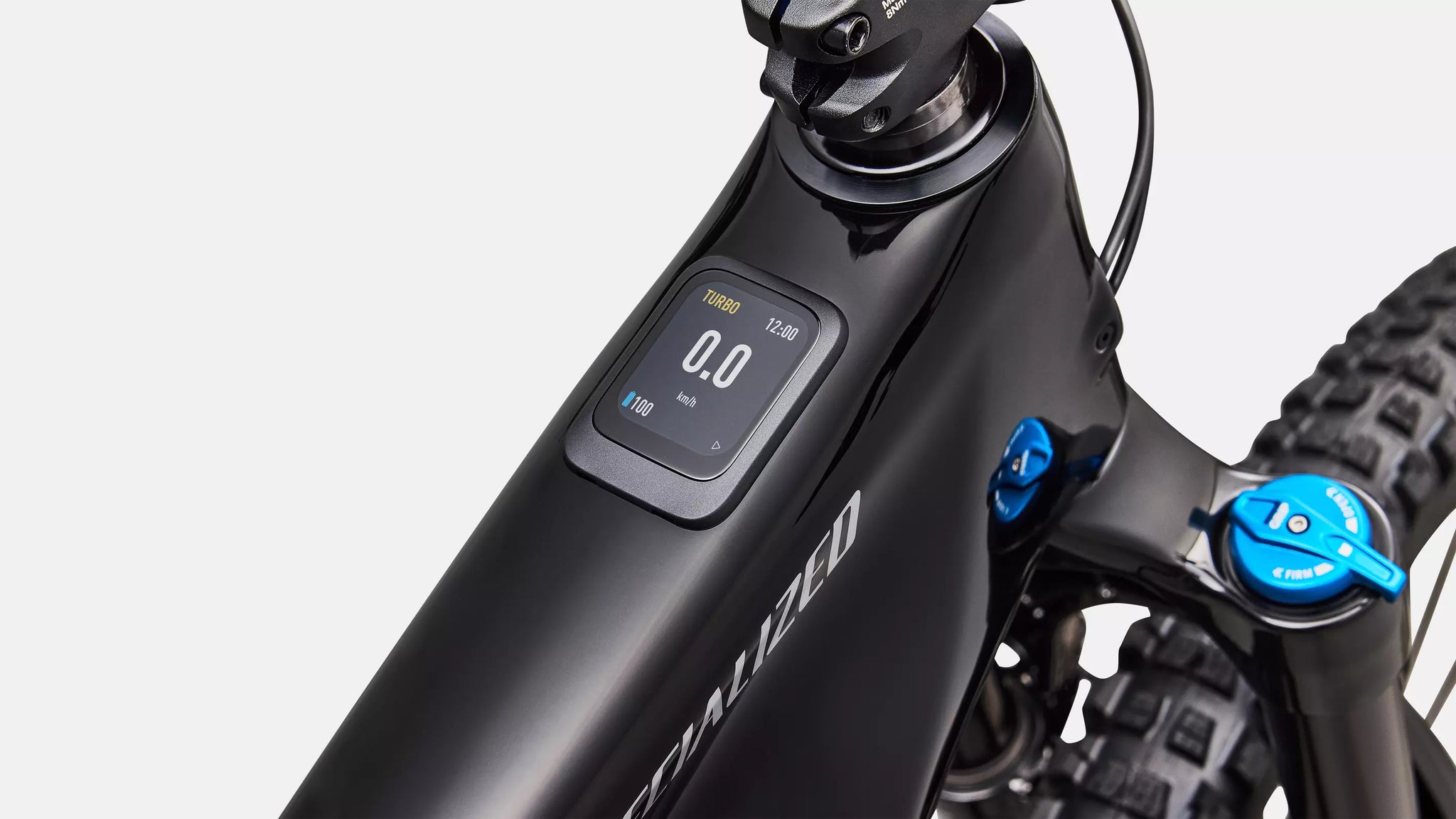

- Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
- Motor
- Specialized 3.1 Motor, 105Nm torque, 810W power
- Charger
- Specialized 4amp charger
- Battery
- Specialized Turbo X2 840Wh integrated battery pack
Frameset
- Seat Binder
- Alloy, 38.6mm
- Frame
- Levo 4 carbon frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm, adjustable head angle, BB height, chainstay length
Suspension
- Fork
- FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset
- Rear Shock

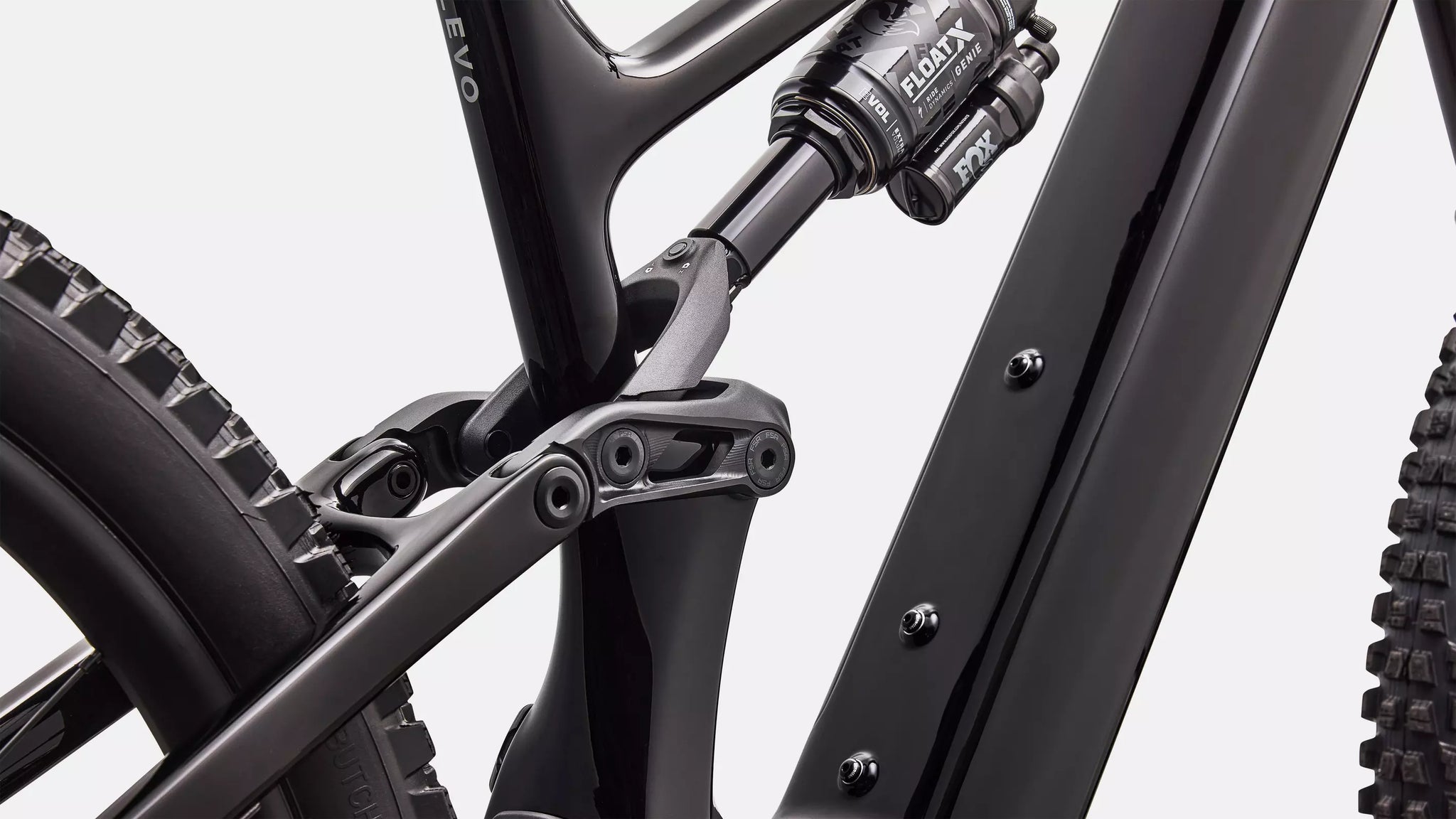

- Fox FLOAT X Genie, Performance series, 210x55, Low speed rebound adjust, climb switch
Brakes
- Front Brake
- SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor
- Rear Brake
- SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor
Drivetrain
- Cassette
- SRAM 12-speed,10-52t
- Chainrings
- SRAM 34t T-Type chainring, 104 BCD, steel
- Shift Levers
- SRAM AXS Pod Controller w/discrete clamp
- Chain
- SRAM GX Eagle Transmission 12-Speed Flattop Chain
- Crankset

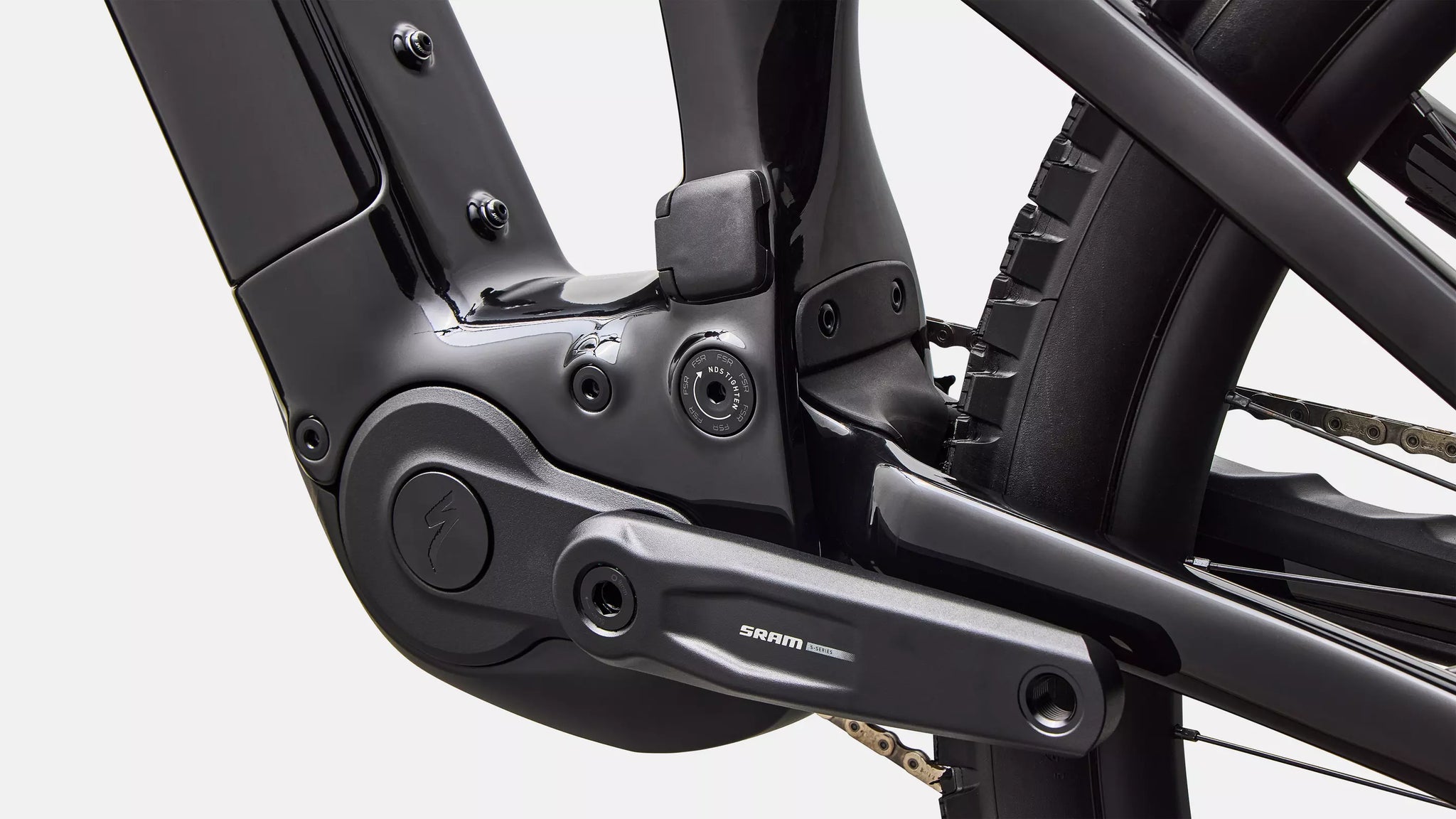

- SRAM S1000 Alloy crank, ISIS interface, 155mm length
- Rear Derailleur
- SRAM S1000 Eagle AXS
Wheels & tires
- Rear Tire
- Butcher GRID Gravity Radial T9 TLR Enduro Tire 27.5x2.4
- Front Tire
- Butcher GRID Gravity Radial T9 TLR Enduro Tire 29x2.4
- Spokes
- DT Swiss Elemental
- Front Hub
- Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h
- Rear Hub
- Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12x148mm thru-axle, 32h, HG Steel Fhb
- Rims
- Specialized, hookless alloy, 30mm inner width, tubeless ready
- Inner Tubes
- Standard, Presta Valve
Cockpit
- Stem
- Alloy Trail Stem, 35mm bar bore
- Handlebars

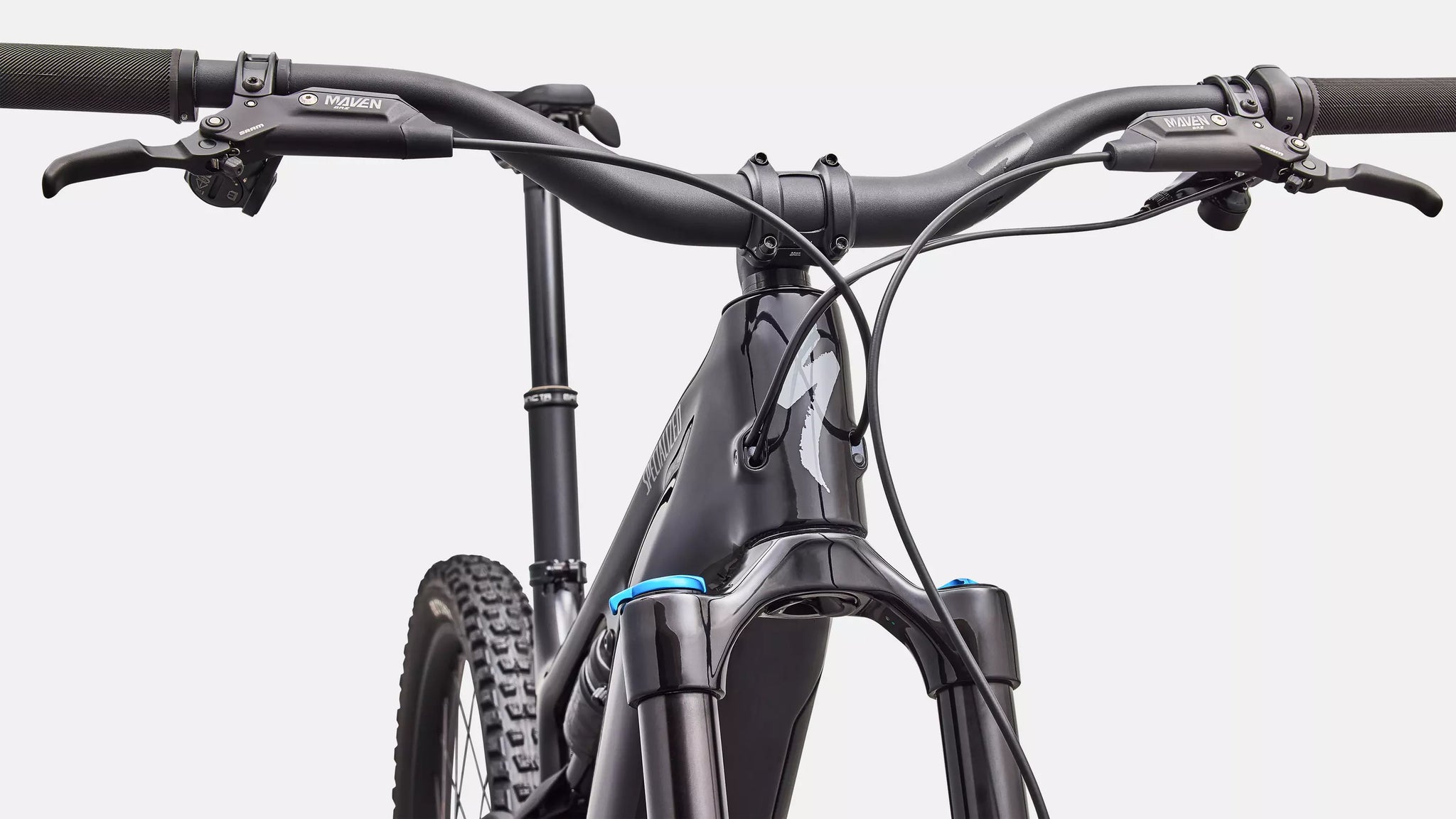

- Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise
- Saddle
- Bridge Comp, Hollow Cr-mo rails 155/143
- Grips
- Specialized Trail Grips
- Seatpost
- Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 150mm, S3: 170mm, S4: 200mm, S5-S6: 230mm
Accessories
- SWAT
- SWAT Internal downtube storage
Product details
- Product ID
- 263410
- Compliance Certification
- As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. <br>For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
- Weight
- 24.54 kg (54 lb, 1.6 oz)
- Weight Size
- S4
